Precision Glass-Encapsulated NTC Thermistors with Axial Leads
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Hefei Minsing |
| Πιστοποίηση: | UL,REACH, ROHS |
| Αριθμό μοντέλου: | MF58, DO35 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 500 τεμ |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Χύμα, Ταινία |
| Χρόνος παράδοσης: | 2-7 εργάσιμες |
| Όροι πληρωμής: | T/T |
| Δυνατότητα προσφοράς: | 100 εκατομμύρια τεμάχια ανά έτος |
|
Λεπτομερής ενημέρωση |
|||
| Επικεφαλής υλικό: | Ποτήρι | Μόλυβδος: | Χάλκινο σύρμα με επένδυση Ni ή Sn |
|---|---|---|---|
| Μέγεθος κεφαλής: | Φ1.8mm | Μήκος καλωδίου: | 28 mm |
| R25℃: | 0,3KΩ-4000KΩ | Β τιμή: | 2500K-5000K |
| Ανοχή Ρ: | 1%, 2%, 3%, 5% | Ανοχή Β: | 1%, 2%, 3%, 5% |
Περιγραφή προϊόντων

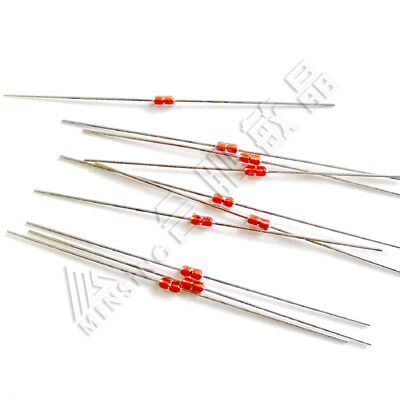

Precision Glass-Encapsulated NTC Thermistors with Axial Leads
The MF58 is a NTC thermistor which is manufactured using a combination of ceramic and semiconductor techniques.
It is equipped with tinned axial leads and then wrapped with purified glass.
Features:
• Stability, high reliability
• Resistance range: 0.3 ~ 4000KΩ
• High resistance precision
• Due to the use of glass packaging, can be used at high temperature and humidity and other harsh environments
• Small size, light weight, rugged, easy in Automated Installer
• Thermal sensing quickly
• Working temperature range: -55 ℃ ~ + 300 ℃
• Body size: Φ1.8mm X 3.8mm
• Agency recognition:UL/cUL
• RoHS compliant
Applications:
Temperature compensation and detection for :
• Household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.)
• Office equipment (copiers, printers etc.)
• Industrial, medical, environmental, weather and food processing equipment
• Liquid level detection and flow rate measurement
• Mobile phone battery
• Apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.
MJ MF 58 -3470 -103 J
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Glass sealing type MF58 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF58-280-301□ | 0.3 | 2800 |
In still air ≥ 2.4mW/℃ |
In still air ≤ 10s |
-55+300℃ |
| MJMF58-338-202□ | 2 | 3380 | |||
| MJMF58-347/395-502□ | 5 | 3470/3950 | |||
| MJMF58-338/347-103□ | 10 | 3380/3470 | |||
| MJMF58-360//395-103□ | 10 | 3600/3950 | |||
| MJMF58-425-203□ | 20 | 4250 | |||
| MJMF58-395/399-473□ | 47 | 3950/3990 | |||
| MJMF58-395/399-503□ | 50 | 3950/3990 | |||
| MJMF58-395/399-104□ | 100 | 3950/3990 | |||
| MJMF58-420/425-204□ | 200 | 4200/4250 | |||
| MJMF58-440-474□ | 470 | 4400 | |||
| MJMF58-445-145□ | 1400 | 4450 |
FAQ:
1.Are you a factory or trading company?
We are a factory founded in 1994 and have over 28 years’ OEM and international trading experience.
2.What’s your main product?
Our main products are NTC Thermistor and Temperature sensor.
3.Any certification of your company or product?
We have certificates of ISO 9001:2015, IATF16949:2016, CE, UL, REACH, RoHS.
4.Which countries have your product been exported to ?
We have exported our product to over 30 countries , such as Germany,America,Poland, Filand,Canada, Spain, Italy, Sweden,France,Russia,Denmark,Netherland,Thailand,Turkey,Brazil, Mexico, Iran, U.A.E , Korea, Argentina etc.
5.Can I visit your factory?
We have over 7000 square meters of workspace and sincerely welcome your business visit.
6.Do you accept OEM or ODM?
Of course.
7.Any quality guarantee or after-sales service?
If any quality complaint , we will give out solution within 5 days.
